Split space PCB for Polygon

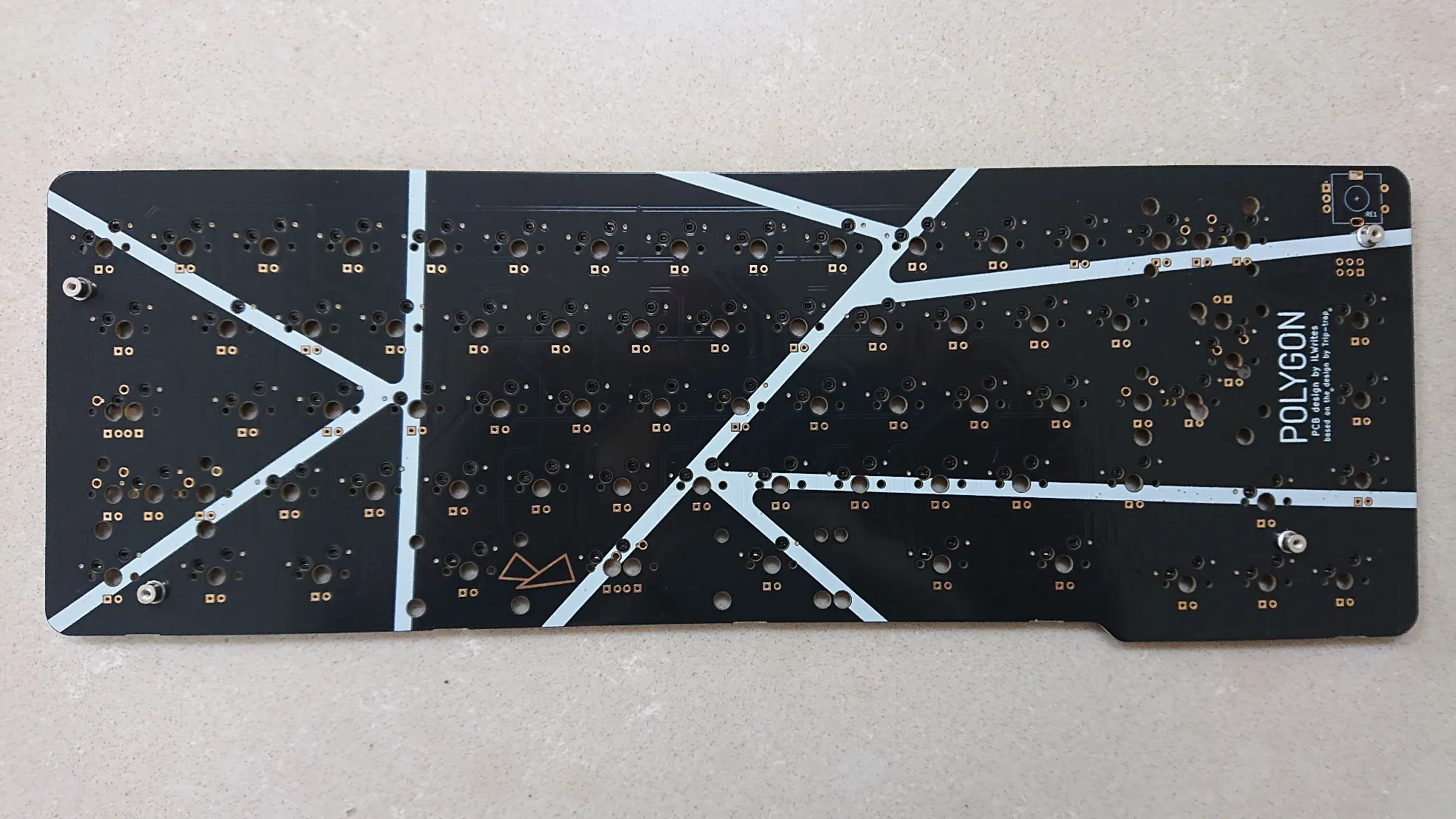

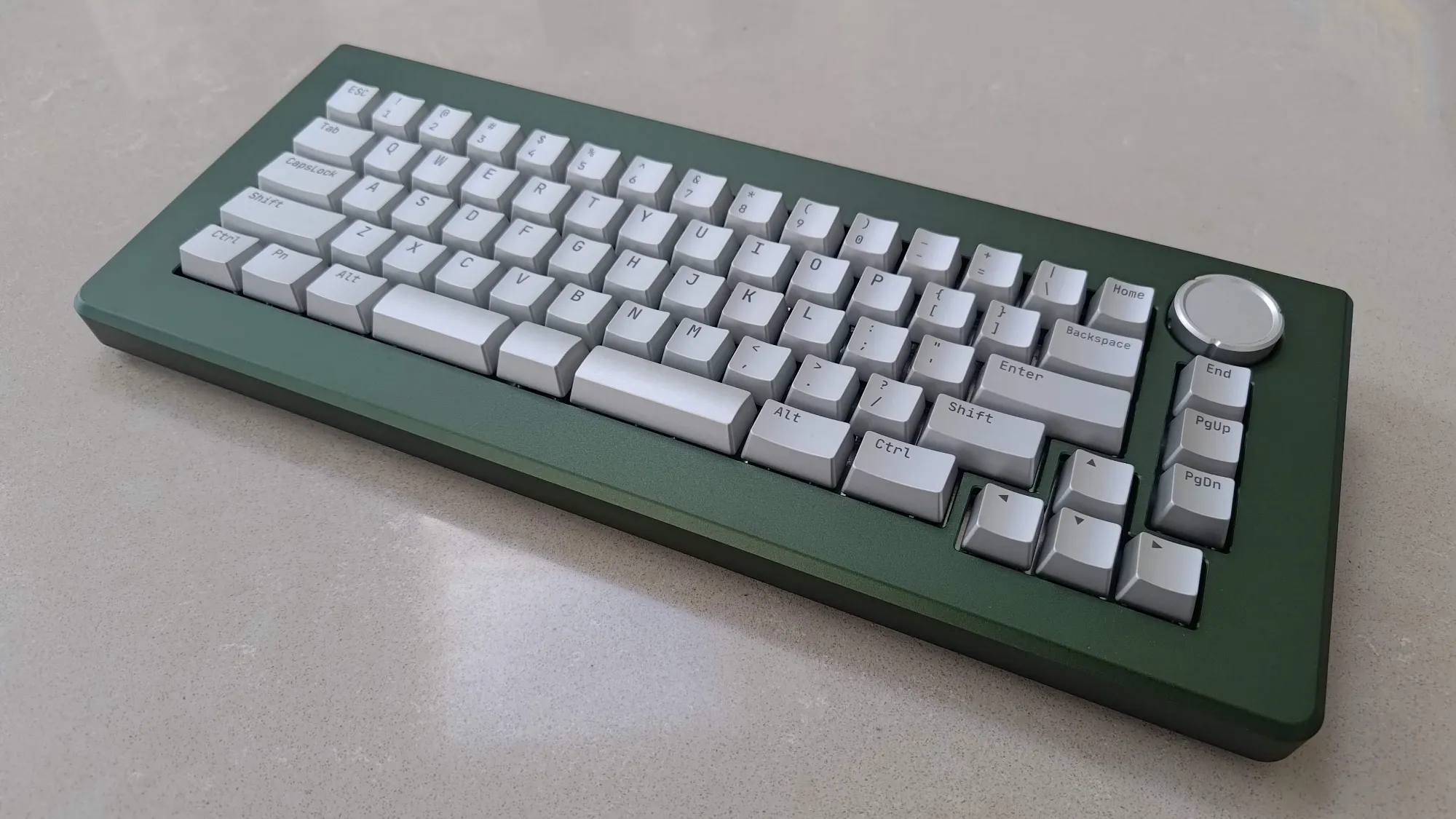

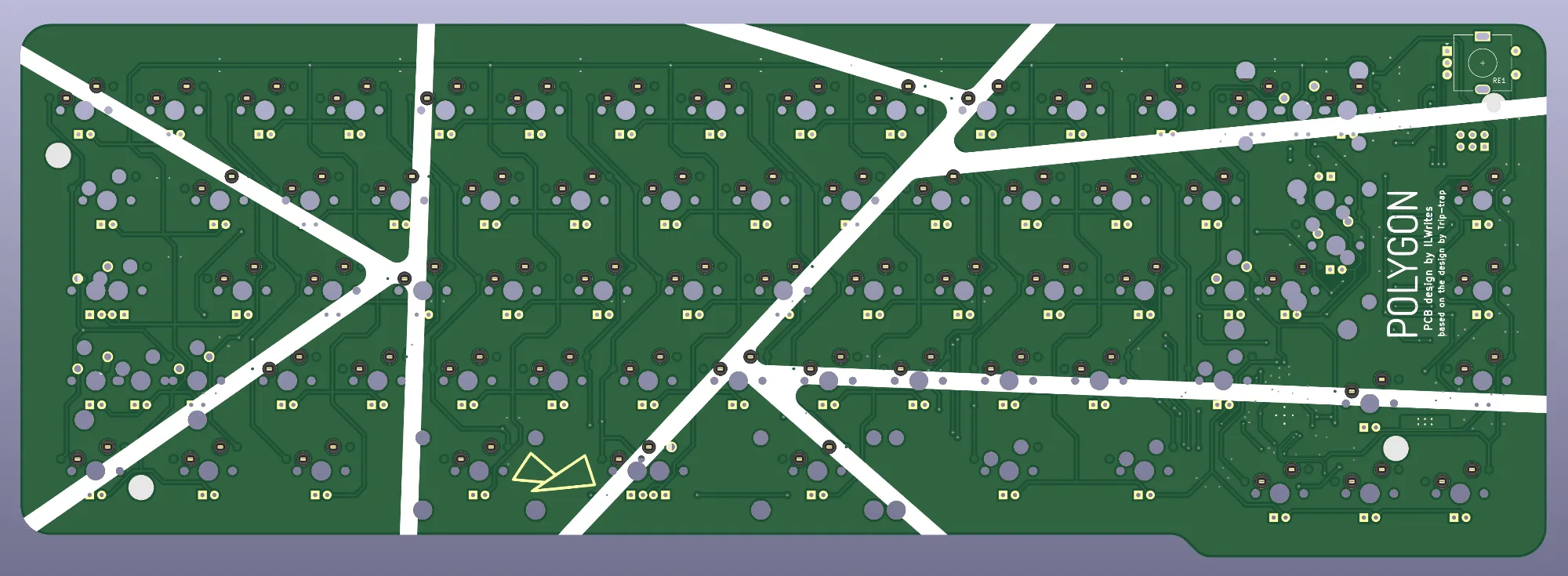

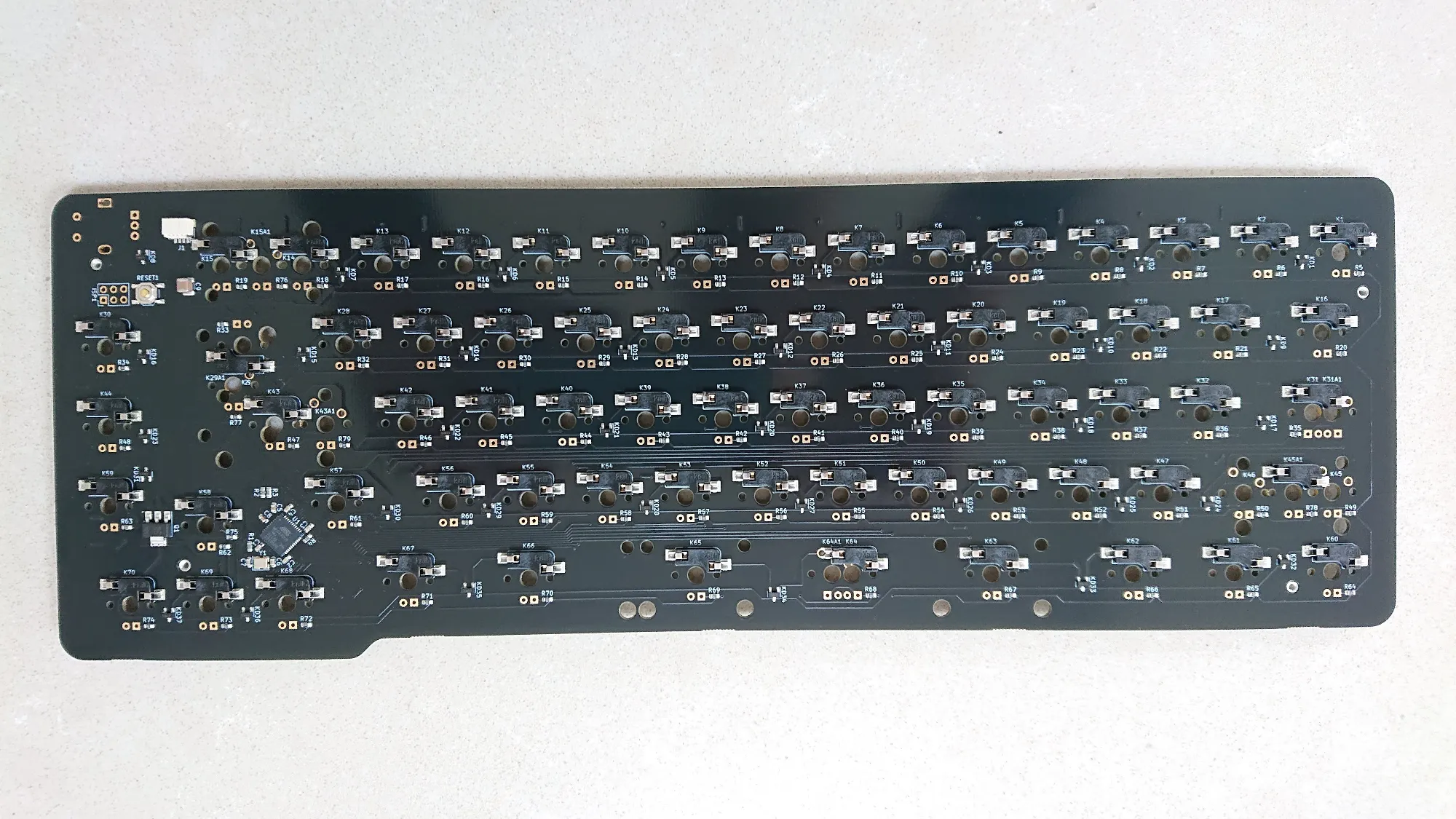

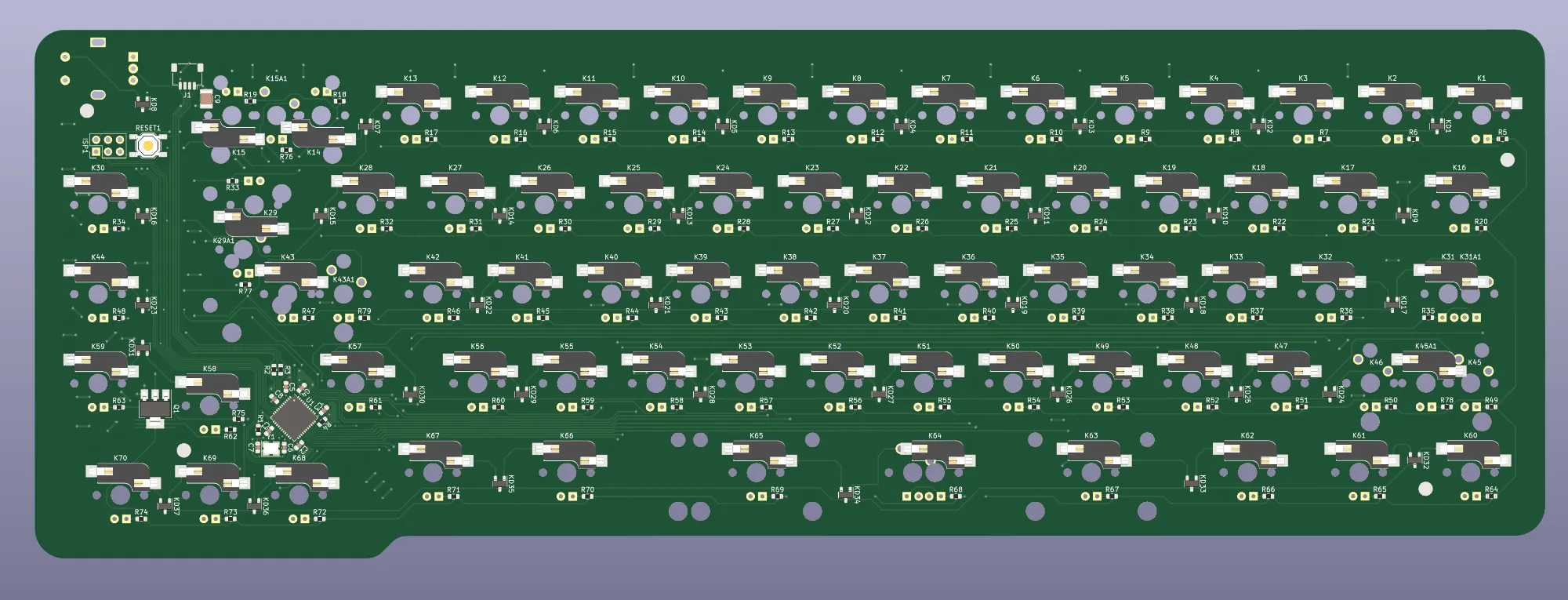

This is a drop-in replacement PCB for Polygon keyboard by Rotwitt. Most notably, it brings split space and split backspace support, but please refer to the below overview of the differences between original and this PCB. Huge thanks to Rotwitt and the author for original PCB design for making this possible!

Important notes:

• USB-C daughterboard not included, you need to reuse the existing one! If you need one, they can be found online, for example https://hineybush.com/products/usb-c-daughterboard
• Encoder is not included
• Stepped Caps Lock requires desoldering the hotswap socket and soldering the switch
• Non-split Backspace requires soldering the switch
• Plate is not included but plate downloads are available at the bottom of the page

github project repository:
https://github.com/PiKeeb/qmk_firmware/tree/IL_Polygon/keyboards/il/polygon

Plate files:

• ANSI
• ISO

Latest firmware is available in downloads.
